SLS

Selective layer sintering (SLS) uses powdered material as input, selectively fusing particles together, layer by layer.



The entire process takes place in a heated pressure chamber.  At first a thin layer of powder is wiped over the build plate before a laser melts the particles in the desired spots. The build plate is then lowered and the process repeats.



A huge advantage of SLS is that overhangs and floating objects don’t need support structures. That’s because dense powder surrounds the 3D print until its finished, providing support before the redundant material gets vacuumed off and reused.



With SLS, it’s also possible to print a large quantity of models in one cycle, reducing total printing time.



3D objects printed using SLS are very dense and have very high stability. The surface quality is decent, but can be polished and coated with varnish. The most common material used with SLS is PA (polyamide) which can also be infused with aluminum, glass or carbon fiber, resulting in better wear or chemical resistance. This 3D plastic printing technology is great for spare parts, prototypes and functional components.

Display per page

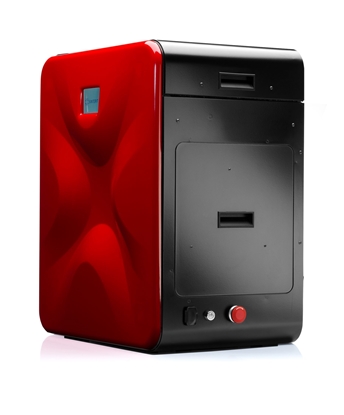

This 3D printer offers lightning-fast printing, a large working area, access to the full range of materials, and open printing parameters. All designed to give you more freedom to innovate more and faster.
Available upon request
Logo of the manufacturer of: Sinterit Lisa X
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume130x180x330 mm
Layer Height75 - 175 microns
3D Printing TechnologySelective Laser Sintering (SLS)
Create high-performance printed parts with the lowest cost of ownership. The QLS230 is one of the largest SLS printers in the market with a print volume of 230x230x230mm. It allows you to create prints with no support material due to its SLS technology for producing 3D-printed parts with tough and durable mechanical properties. The QLS230 brings this capability to every prototyping user at an unprecedented value.
From 80.000,00 €
Logo of the manufacturer of: QLS230
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume230 x 230 x 230 mm
Layer Height0.08 mm / 0.1 mm / 0.15 mm / 0.2 mm
Maximum Print SpeedUp to 20mm/hr
The TPM3D S600DL is a Selective Laser Sintering (SLS) printer equipped with dual lasers and a digital dynamic focusing system. It's designed to enhance production efficiency while maintaining part quality. The printer has a notable build size of 600x600x800mm, which is currently among the largest in the SLS printer category. This capacity is significant for producing large-size parts.
Logo of the manufacturer of: S600DL
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume600×600×800mm
Layer ThicknessVaries from 0.06 to 0.2 mm, with 0.12 mm (recommended)
Parts Scanning SpeedUp to 25,000 mm/s
The S320HT is an additive manufacturing system, with the capability to print PEEK materials and other high-temperature substances. It stands out with its fine spot size, adaptable forming space, and notably high operating temperature, reaching up to 350℃ in the working chamber. This printer is particularly designed for applications requiring precision and endurance in extreme temperatures.
Logo of the manufacturer of: S320HT
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume320×320×380mm
MaterialsCapable of printing with PEEK material
Parts Scanning SpeedUp to 13,000 mm/s.
The S260 is a professional-grade additive manufacturing system, specifically designed with the education market in mind. It features a fine light spot and flexible building space, making it ideally suited for a variety of professional teaching and printing tasks. Its capabilities make it a valuable asset in educational settings, enabling hands-on learning and experimentation with additive manufacturing technologies.
Logo of the manufacturer of: S260
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume260×260×450mm
SpecializationDesigned for easy operation in education
Parts Scanning SpeedUp to 8,000 mm/s
The TPM3D S480 SLS Printer is designed for efficient production of plastic parts, suitable for both large batch manufacturing and smaller-volume production. This printer is recognized for its extensive molding range and high scanning speed. When combined with other models like the S260, it can manufacture both small and large parts, offering a balance between cost-effectiveness and high production capacity. This makes the S480 a preferred choice for additive manufacturing service providers.
Logo of the manufacturer of: S480
3D Printing TechnologySelective Laser Sintering (SLS)
Build Volume480×480×600mm
Layer ThicknessVaries from 0.06 to 0.2 mm, with 0.12 mm (recommended)
Maximum Print SpeedUp to 21,000 mm/s.
