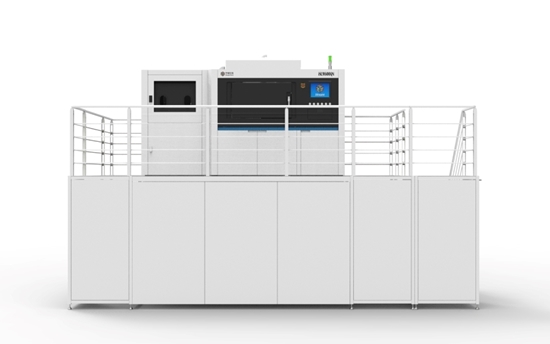

iSLM600QN

SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high-powered laser selectively fuses the powder by tracing the cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of a protective gas chamber to avoid the metal powder reacting with oxygen at high temperatures.

Ζητήστε προσφορά

Selective Laser Melting (SLM)

Περιγραφή

Product Specifications

Large-format dual galvanometer Metal 3D Printing system
Technology: SLM ( Selective Laser Melting)
Material: Aluminum Alloy, Stainless Steel, Die Steel, Titanium Alloy, Cobalt-chromium Alloy, Nickel Base Superalloy, Copper Alloy etc.
Laser Type: Fiber Laser x4 (500W/1000W)
Recoating System: Scraper recoating
Layer Thickness: 0.02~0.10mm
Scanning Speed: 1.0~10.0m/s
Build Envelope: 600mm(X)x600mm(Y)×1000mm(Z)
Machine Size: 3.30m(W)×1.65m(D)×4.05m(H)

Machine advantages

• Programmable user software
• Data packages for different materials building
• High vacuum, low leaking mechanical design
• Intelligent partitioning laser scanning path
• Directly delete damaged parts in the printing process
• Printing info APP monitor and smart push

Technical advantages

• High accuracy, achieve to 0.05mm
• Directly manufacture metal functional parts, vastly shorten the production process
• Metal functional parts have metallurgical bonding structure, high density, and great mechanical property
• Directly manufacture complex geometrical shape aerospace functional parts
• Various materials, including mono metal powder and mixed metal powder
• Suitable for customizing single or small batch functional parts

Laser Type	Fiber laser × 4
Laser Wavelength	1064nm
Laser Power	(500W/1000W) × 4
Process	bi-directional scraper paving
Powder Supply	Dropping type, circulating automatic powder supply system
Normal Build	0.05mm
Quick Build	0.05~0.15mm
Precision Build	0.02~0.05mm
Beam (diameter@1/e2)	0.06~0.20mm
Scanning Galvanometer	High Speed Scanning Galvanometer × 4
Parts Scanning Speed	4.0m/s (recommended)
Blank Jumping Speed	10.0~28.0m/s (recommended)
Protective gas	N2 / Ar (Active metal materials must be protected with Ar)
Flow Control	0~3 L/min intellient adjustment
Dust Extraction Control	High efficiency Protection recycling system
Volume	Approx. 360L
XY Platform	600mm(X) × 600mm(Y) (Screw hole, rounded, etc. are not calculated)
Z Axis	1000mm(Including substrate thickness)
Max Weight	300kg
Build Vat Type	Precision resistor heater
Materials	Stainless Steel / Die Steel / Titanium Alloy / Aluminium Alloy / Co-Cr Alloy / Nickel Alloy / Cuprum etc.
Network	Ethernet, TCP/IP, IEEE802.3
Control Software	iSLM (Presto SLM)
Data Preparation Software	3dLayer
Data Interface	CLI file, SLC file, STL file
Power	380V(±10%) AC 50/60Hz, three-phase, 5/20A
Ambient Temperature	20-26ºC
Relative Humidity	Less than 40%, non-condensing
Installation Condition Size	3.30m(W)×1.65m(D)×4.05m(H)
Installation Condition Weight	Approx. 8500kg (Climbing platform not included)
Warranty	Laser: 5000 hours or 12 months (whichever comes first) Main Machine: 12 months from installation date
