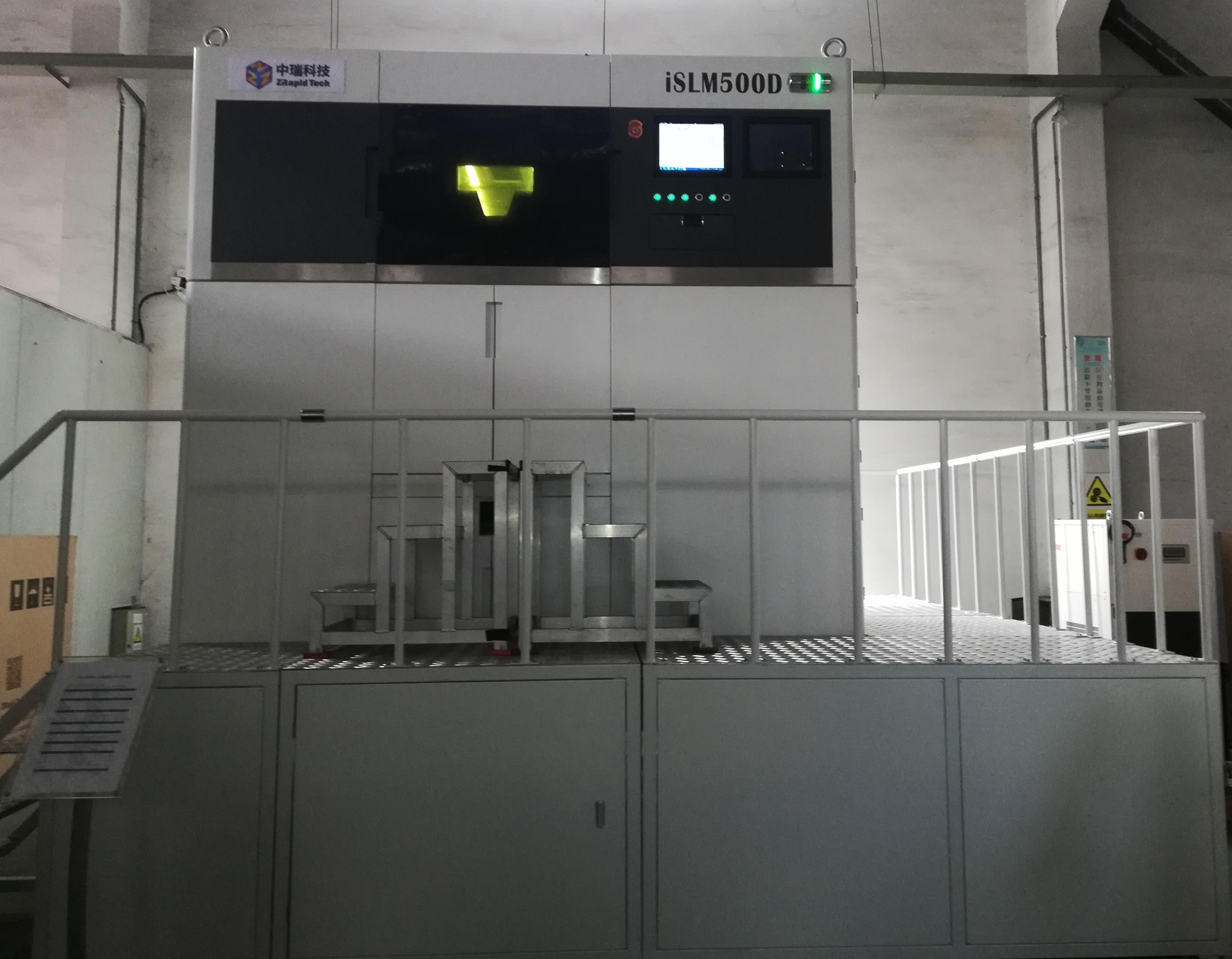

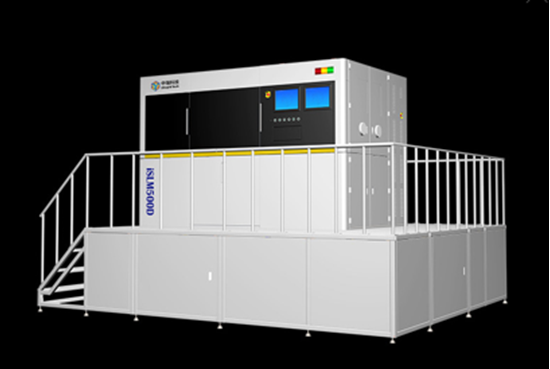

iSLM500

The iSLM500 is an industrial grade metal 3D Printer, with extremely large building plate, open materials and significant printing capabilities. Ideal for those who want to print extremely large detailed objects.
Call for pricing
Laser Power
500W x 2
Layer Height
20 - 150 microns
Build Volume
500 x 500 x 800 mm
Product Weight
8500 kg

OVERVIEW

SLM printing uses selective laser melting technology which melts metal powders and solidifies layer by layer until a three-dimensional part is built. During the process, the ruler in the build chamber will pave one layer of the metal powder, a high powered laser selectively fuses the powder by tracing cross-section of the part on the surface of a powder bed and then a new coat of material is applied for the next layer. The whole process is in a high vacuum chamber or full of protective gas chamber to avoid the metal powder reacts with oxygen at high temperature.
ZRapid is using a high energy and fine spot laser, the equipment can complete complex parts in a very short period time while using conventional methods that will take several weeks or even months to complete in comparison. Parts not only have precise dimension, high tensile and high density, but also excellent in mechanical properties. Mainly used for rapid production of high-precision, high quality metal parts.

Picture for category OVERVIEW

MAIN ADVANTAGES

  • Excellent quality machine (German Laser IPG, German Galvanometer ScanLab, Japanese Automation Panasonic, Japanese Omron sensors, Siemens PLC, Industrial PC Advantech, Japanese Panasonic΄ motors, Materialise Software)
  • Fully open system
  • Extremely large building plate
  • Open materials & significant printing capabilities
  • Excellent value for money in the highest quality
  • Total local support and extensive 3d printing materials in stock

HIGH QUALITY PARTS

  • Parts with high quality surface before polishing
  • Parts in high accuracy, for precision samples
  • Directly produce functional metal parts, simplify the manufacture process
  • Parts have metallurgy and mechanical properties, relative density higher than 99%. Post process is unnecessary
  • Parts can be printed within minutes to hours according to the size and complexity

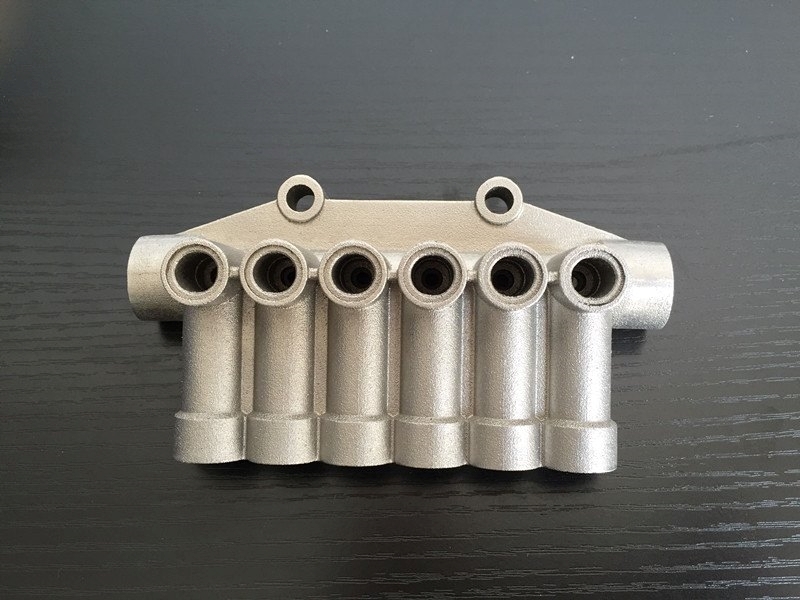

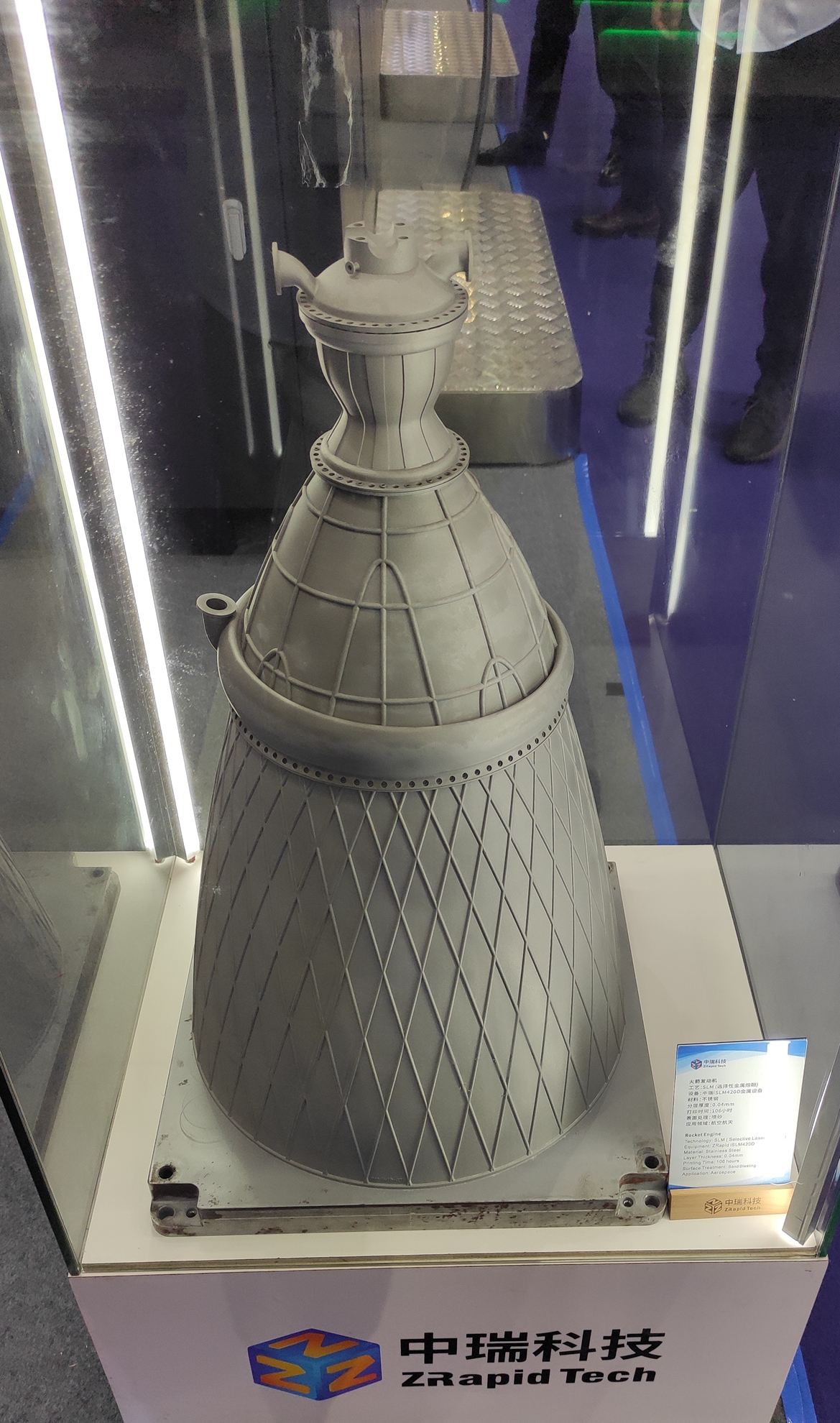

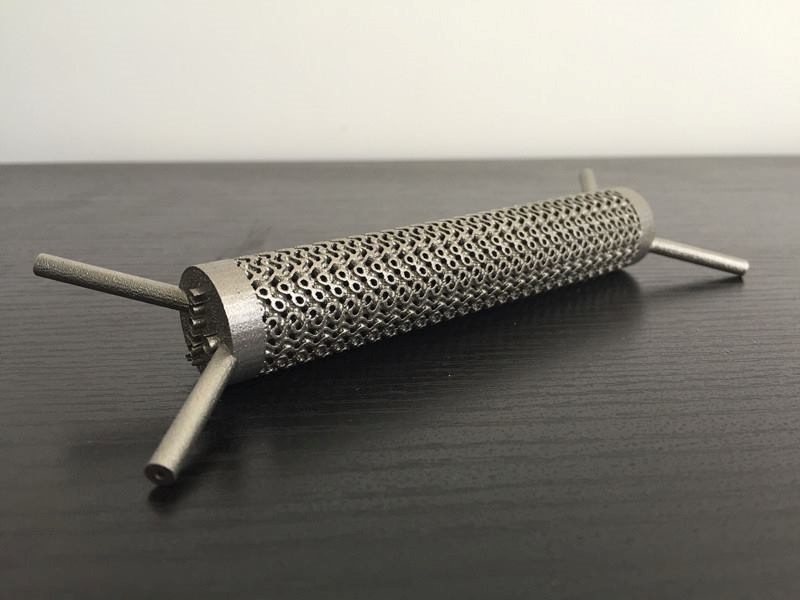

BUILDING FUNCTIONAL METAL PARTS

  • Directly produce functional complex geometric parts like snap-fit or loose joint hinge
  • Widely chosen materials, the metal powder could be single metal or alloy
  • Especially for single part or small amount of functional parts
  • Ideal for industrial production, prototyping, research, dental, medical, etc

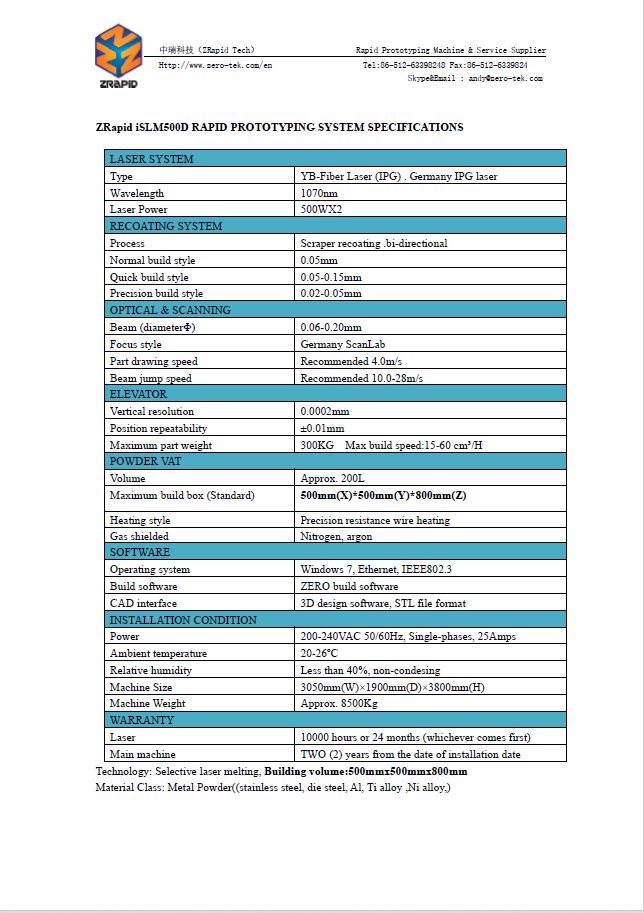

Build Volume 500 x 500 x 800 mm
Laser Power 500W x 2
Layer Height 20 - 150 microns
Product Weight 8500 kg
Product Dimensions (WxDxH) 3.05m(W) × 1.90m(D) × 3.80m(H)
Open Materials Yes
Material Compatibility Stainless steel, tool steel, cobalt chrome, aluminium, nickel-based alloys, titanium
