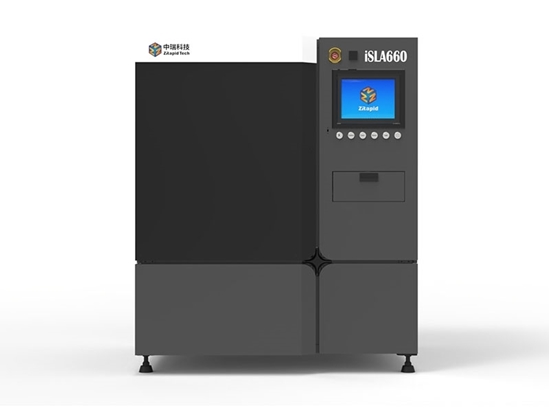

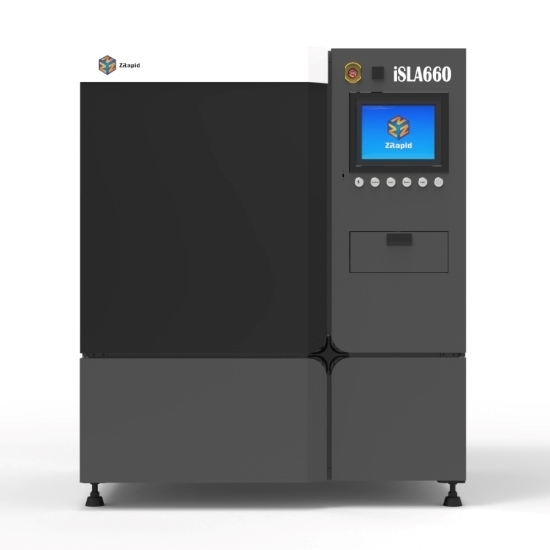

iSLA660

SLA (Stereolithography) is an additive manufacturing process that works by focusing a UV laser on a vat of photopolymer resin. With the help of computer-aided manufacturing or computer-aided design(CAM/CAD) software, the UV laser is used to draw a pre-programmed design or shape onto the surface of the photopolymer vat. Photopolymers are sensitive to ultraviolet light, so the resin is photochemically solidified and forms a single layer of the desired 3D object. This process is repeated for each layer of the design until the 3D object is complete.
Ζητήστε προσφορά
Τεχνολογία 3D Printing
Stereolithography (SLA)
Μέγιστo Μέγεθος Εκτύπωσης
600mm(X)x600mm(Y)x300mm(Z)

Machine advantages

• Dynamic focus super-fast scanning style
• Large surface intelligent partitioning scanning
• Granite integrated Z axis lifting platform
• intelligent positioning and vacuum adsorption recoater
• Damaged parts can be deleted immediately
• Remote App monitoring & Smart push

Product Specifications

Overview

Technology: Stereolithography
Material: Photosensitive Resin
Laser Type: Diode-pumped solid-state laser Nd: YO4
Recoating System: Intelligent positioning and vacuum adsorption recoater
Layer Thickness: 0.05~0.15mm
Scanning Speed: 6.0~10.0m/S
Build Envelope: 600mm (X)X600mm(Y)x300mm(Z)
Machine Size: 1.58m(W)x1.26m(D)×1.90m(H)

Full Specifications

LASER SYSTEM
Type: Diode-pumped solid-state laser Nd:YVO₄
Wavelength: 354.7nm
Power1000/2000/3000mW

RECOATING SYSTEM
Process: Intelligent positioning - Vacuum press recoat
Normal Build: 0.1mm
Quick Build: 0.1~0.15mm
Precision Build: 0.05~0.1mm

OPTICAL & SCANNING
Beam (diameter@1/e2): 0.10~0.50mm
Scanning Galvanometer: High-Speed Scanning Galvanometer
Parts Scanning Speed: 6.0m/s (recommended)
Blank Jumping Speed: 10.0m/s (recommended)
Reference Building Speed: 50~180 g/h

ELEVATOR
Position repeatability: ±0.01mm
Elevator Motor: High Accuracy Servo Motor
Benchmark Platform: marble benchmark platform

RESIN VAT
Volume: 200L@400mm(Z)XY Platform: 600mm(X)×600mm(Y)
Z Axis: 400mm
Max Weight: 80kg@400mm(Z)
Resin heated style: Hot air
Photopolymer Resin: ZR680( Accurate & White ) ZR710( Tough & White ) ZR820( High Transparency )

SOFTWARE
Network: Ethernet, TCP/IP, IEEE802.3
Control Software: iSLA(ZERO 5.0)
Data Preparation Software: 3dLayer
Data Interface: CLI file, SLC file, STL file

INSTALLATION CONDITION
Power: 200~240VAC 50/60Hz, single phase, 5 / 10Amps
Ambient Temperature: 20-26ºC
Relative Humidity: Less than 40%, non-condensing
Size: 1.60m(W)×1.30m(D)×1.90m(H)
Weight: Approx. 900kg

WARRANTY
Laser: 5000 hours or 12 months (whichever comes first)
Main Machine: 12 months from installation date
