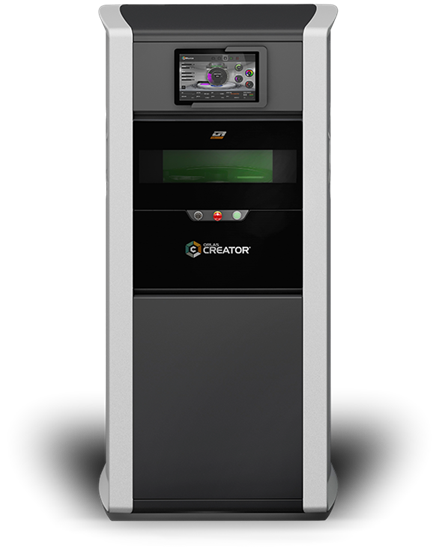

ORLAS Creator

The high end 3D metal printer CREATOR offers you all the advantages of additive manufacturing. Components and constructions in almost every geometric shape that cannot be manufactured using traditional manufacturing techniques can be created easily and quickly – without the need for additional tools.
From 115,000 €
*Net Price
3D Printing Technology
Metal Powder (SLS, SLM, DMP)
Build Volume
Φ100 mm x 110 mm
Layer Height
20 – 100 microns
Laser Power
250W

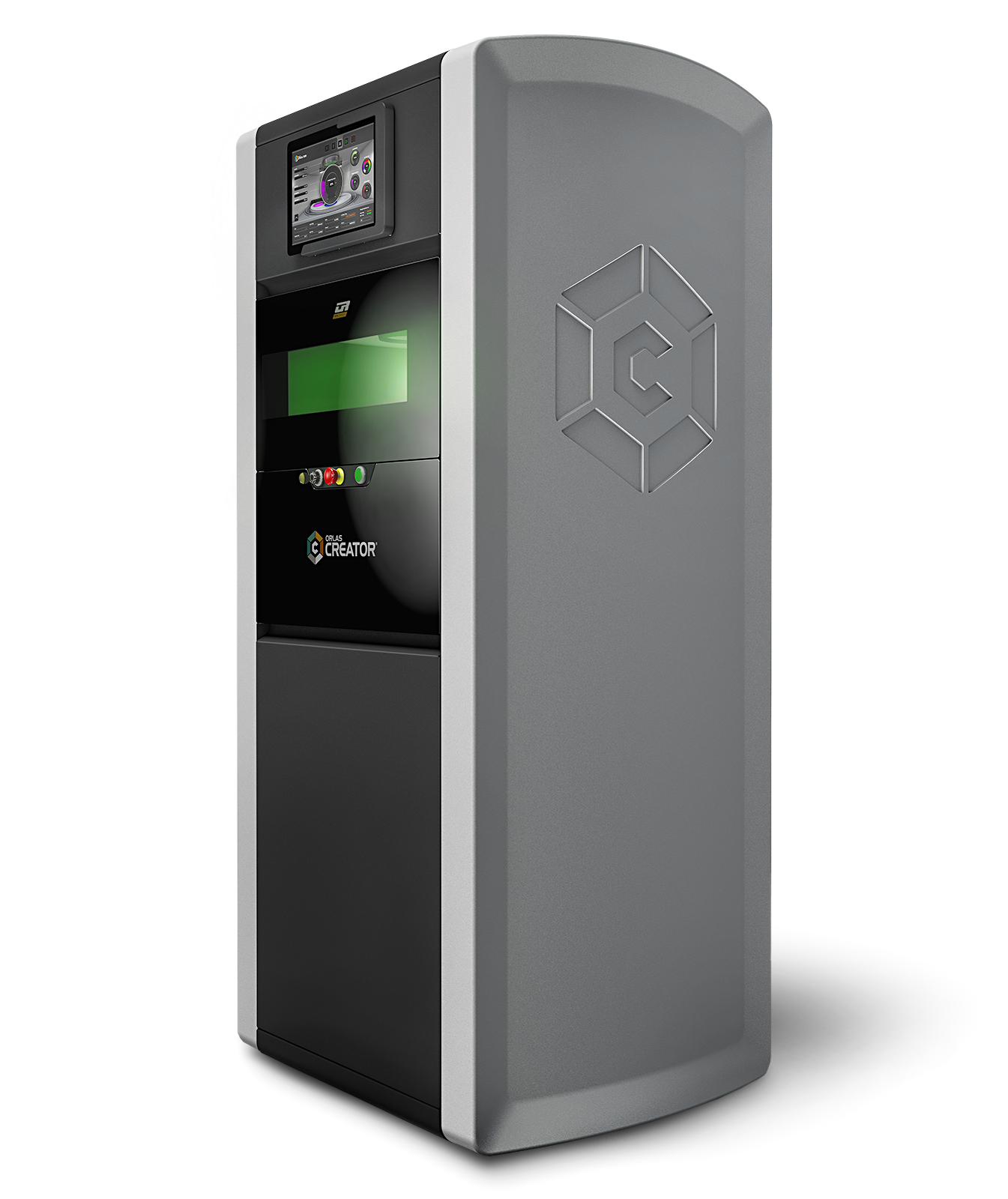

CREATOR Metal 3D Printer for Precision Components

The high end 3D metal printer CREATOR offers you all the advantages of additive manufacturing. Components and constructions in almost every geometric shape that cannot be manufactured using traditional manufacturing techniques can be created easily and quickly – without the need for additional tools.

The system contains a construction chamber with an innovative coating concept that makes an accelerated and smooth operation possible – and hence a manufacturing speed that is 30 % quicker than comparable systems on the market.

At the heart of the system is a 250 W fiber laser that ensures a consistent process conditions and a fine resolution, high component density and surface quality due to its beam quality and performance stability.

The handling and processing of the printing data is realized directly via the CAD file – with the help of the 3D printing module integrated into the APP SUITE CAD/CAM software.

With its machine, operating software, and interface development, CREATOR fulfills all relevant criteria for a stand-alone system – and ensures easy integration possibilities.

Picture for category CREATOR Metal 3D Printer for Precision Components

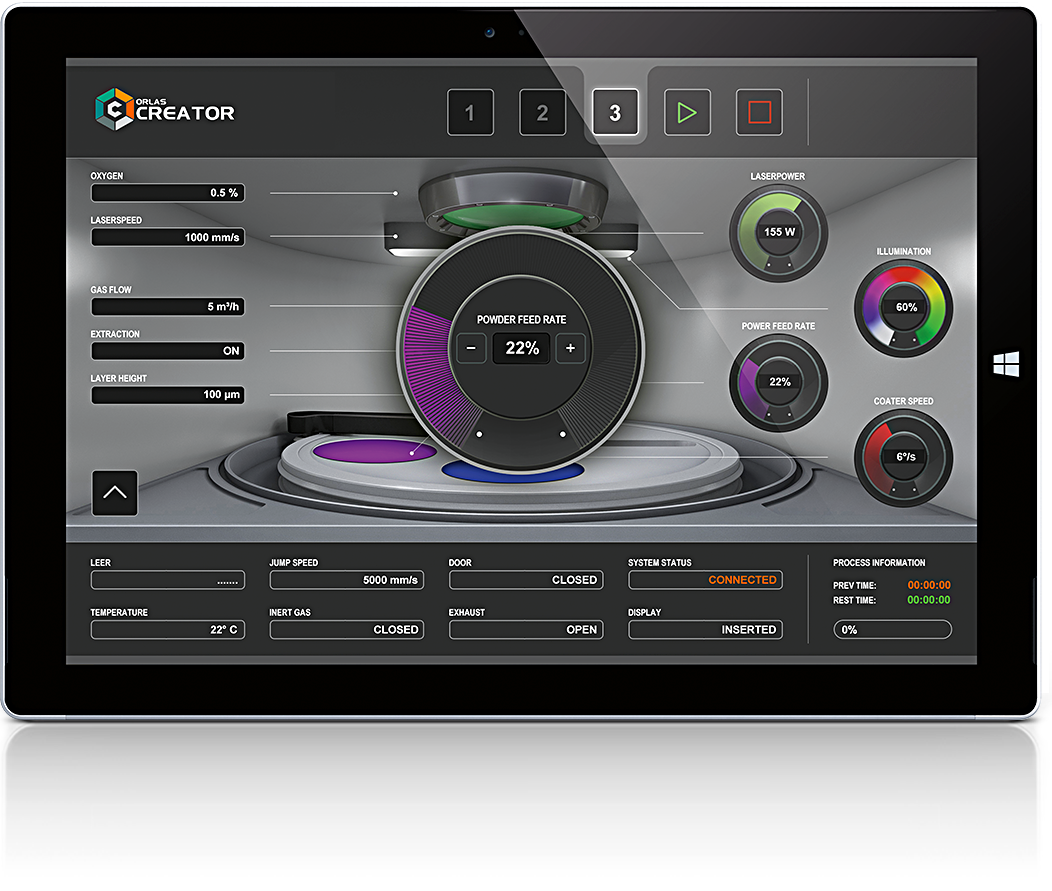

Total Control. Anytime. Everywhere.

To develop a user-friendly interface for the 3D metal printer CREATOR was a big challenge for us. How can the most innovative 3D printer on the market be adjusted to a controller that is just as innovative?

To achieve this, state-of-the art technology, including a high resolution display, touch screen, wireless technology, and cloud computing had to be used.

The user interface makes it possible to monitor all process parameters, to control them, and to modify them – even when a component is being printed. And it doesn’t matter where you are. With the controller, you have real-time access to all of your systems.

Picture for category Total Control. Anytime. Everywhere.
3D Printing Technology Metal Powder (SLS, SLM, DMP)
Build Volume Φ100 mm x 110 mm
Layer Height 20 – 100 microns
Spot Size min 40 microns
Laser Power 250W
Material Compatibility Stainless steel, tool steel, cobalt chrome, nickel-based alloys, precious metals
Operating Systems Windows 7, 8, 8.1, 10 (64 bits) MAC OS X 10.10, 10.11, 10.12 , 10.13 Linux 14.04
Free Printing Software YES
Supported File Formats STL, OBJ, 3DS, FBX, DAE, 3MF
Product Dimensions (WxDxH) 650 x 550 x 450 mm
Product Weight 470 kg
