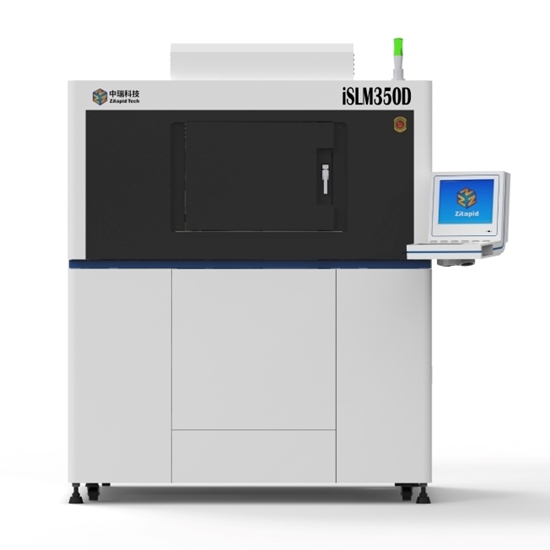

iSLM350D

iSLM350D is an industrial-grade metal 3D printer, which can produce high-quality metal parts with a large build volume. The printer utilizes advanced technologies for gas recirculation and Dual Laser path generation, enabling efficient and cost-effective production of metal parts for various industries including aerospace, automotive, industrial, and medical.
Τεχνολογία 3D Printing
Selective Laser Melting (SLM)

Printing in SLM

SLM is a 3D printing technology that uses metallic powder to print metal objects instantly.

During printing, a coating mechanism (the recoater) spreads a layer of metallic powder on the printing plate and a powerful laser beam selectively melts the powder of the current layer. After the fusion is complete, the printing platform is moved down one layer, and the process is repeated until the entire object is fused. The whole process is carried out in a chamber, with a shielding gas, to prevent the metal from reacting with other gases at high temperatures.

The main advantage of SLM technology is that it offers many new options in manufacturing metal parts, such as geometric freedom in design, weight reduction, flexibility in prototyping, and speed in producing metal objects in small quantities.

Εικόνα για την κατηγορία Printing in SLM
Laser Type Fiber laser × 2
Laser Wavelength 1064nm
Laser Power 500W×2 (Single laser optional)
Process The scraper spreads powder in both directions
Normal Build 0.05mm
Quick Build 0.05~0.15mm
Precision Build 0.02~0.05mm
Beam (diameter@1/e2) 0.06~0.20mm
Scanning Galvanometer High Speed Scanning Galvanometer × 2
Parts Scanning Speed 1.0~4.0m/s (recommended)
Blank Jumping Speed ≥10.0m/s
Reference Building Speed 15~50cm³/h
Protective gas Nitrogen (N2) / Argon (Ar)
Flow Control 0~3 L/min intellient adjustment
Dust Extraction Control Efficient protective gas circulation system
Build Vat Volume About 63L
XY Platform 350mm(X)×350mm(Y)
Z Axis 500mm (Z height includes thickness of build plate)
Max Weight 150kg
Build Vat Type Precision resistance wire heating
Materials Titanium alloy, aluminum alloy, superalloy, cobalt-chromium alloy, stainless steel, copper alloy, high-strength steel, mold steel, etc
Network Ethernet, TCP/IP, IEEE802.3
Control Software 3D-Layer, Presto-SLM, ZRapid-Slice Viewer
Data Preparation Software 3dLayer
Data Interface CLI file, SLC file, STL file
Power 380V(±10%) AC 50/60Hz, three-phase, 25A
Ambient Temperature 20-26ºC
Relative Humidity Less than 40%, non-condensing
Installation Condition Size 1.95m(W)×1.43m(D)×2.5m(H)
Installation Condition Size Approx. 2500kg
Warranty Laser: 5000 hours or 12 months (whichever comes first) Main Machine: 12 months from installation date
